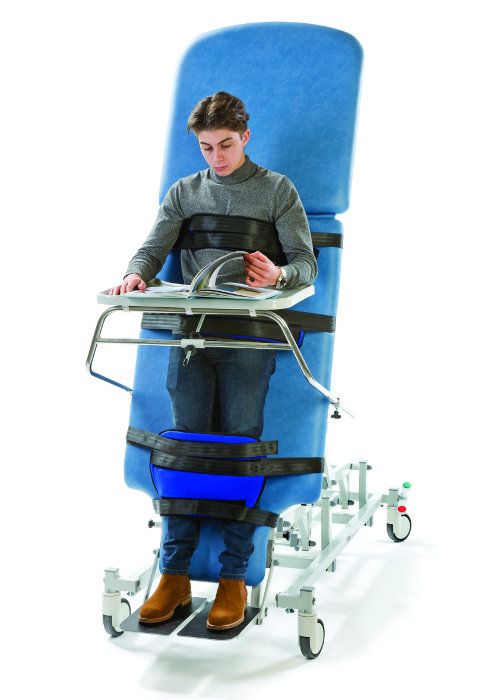

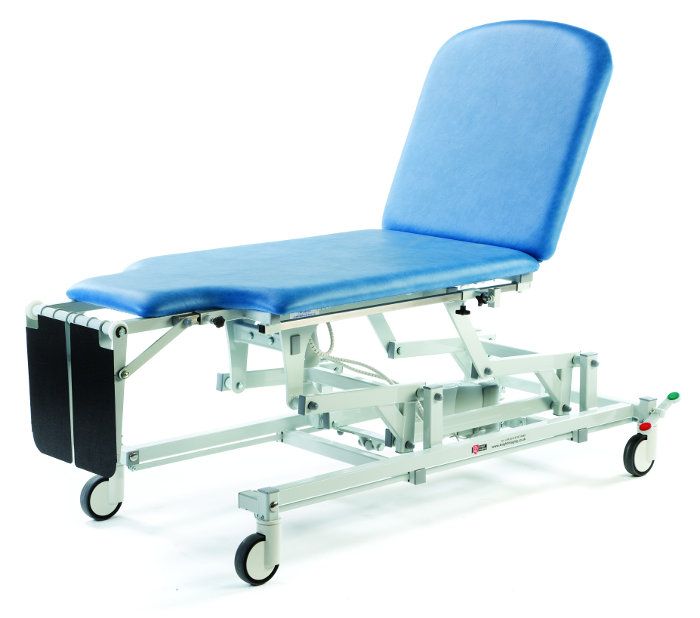

15703 - Therapy Tilt table Deluxe

15703

Therapy Tilt table with 2 section top incorporating an adjustable backrest - electric height and tilting operation with hand control switch

The Therapy Tilt table has been designed to meet the requirements of a wide range of applications for rehabilitation, assessment and examination procedure. For the handicapped and disabled patient the requirement to stand or be upright is of paramount importance. It improves the quality of life, assists the natural gravitational functions of the body, re-educates the balance mechanisms affected by long periods of lying and gives a degree of independence.

Features

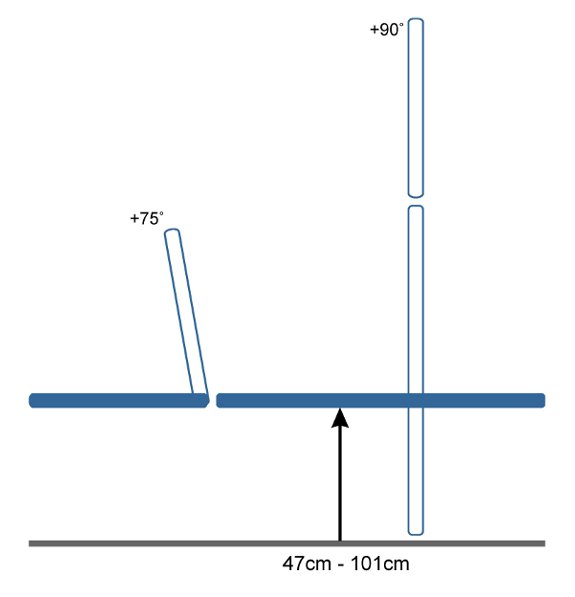

  • adjustable backrest from 0° to 75° with gas strut
  • safe working load and lifting capacity (from minimum height) of 225 kg
  • height: minimum 47 cm - maximum 101 cm
  • electric height and tilting operation with hand control switch
  • large wheel design with central locking and steering facility
  • adjustable angle dual foot boards, positive (+15°) and negative (-30°)
  • supplied with worktable, patient hand grips and set of harnesses
  • tilt angle inclinometer fitted as standard
  • oilite bearings on all pivot points
  • clearance beneath frame for mobile hoist
  • choice of upholstery color
Standard Accessories
Optional Accessories
15703 - Therapy Tilt table Deluxe
15703 - Therapy Tilt table Deluxe
15703
central wheel locking
standard colors
